High capacity hold down plate
For high-capacity tie down in high wind Regions

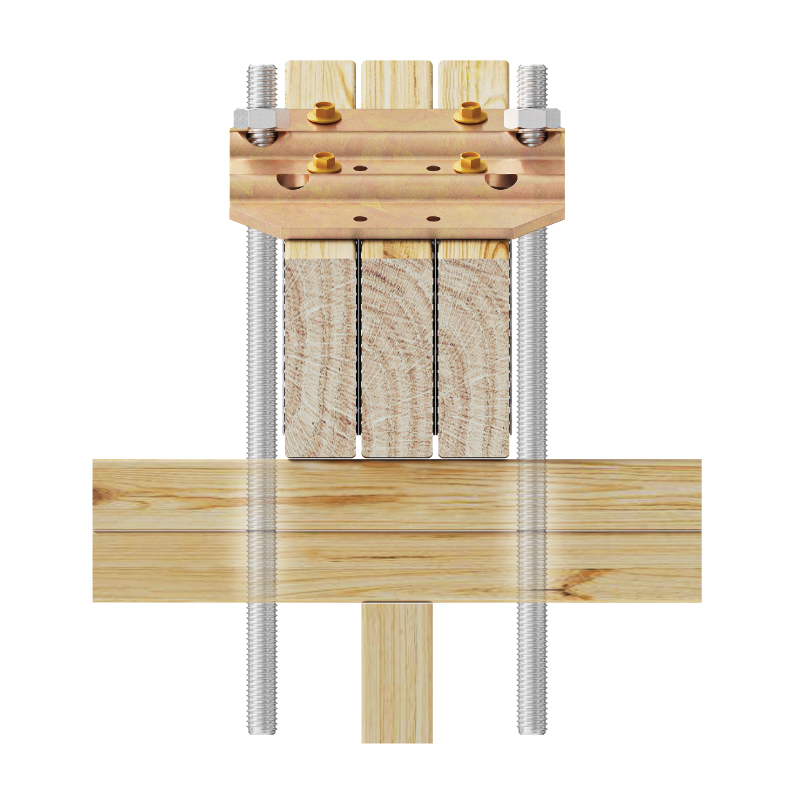

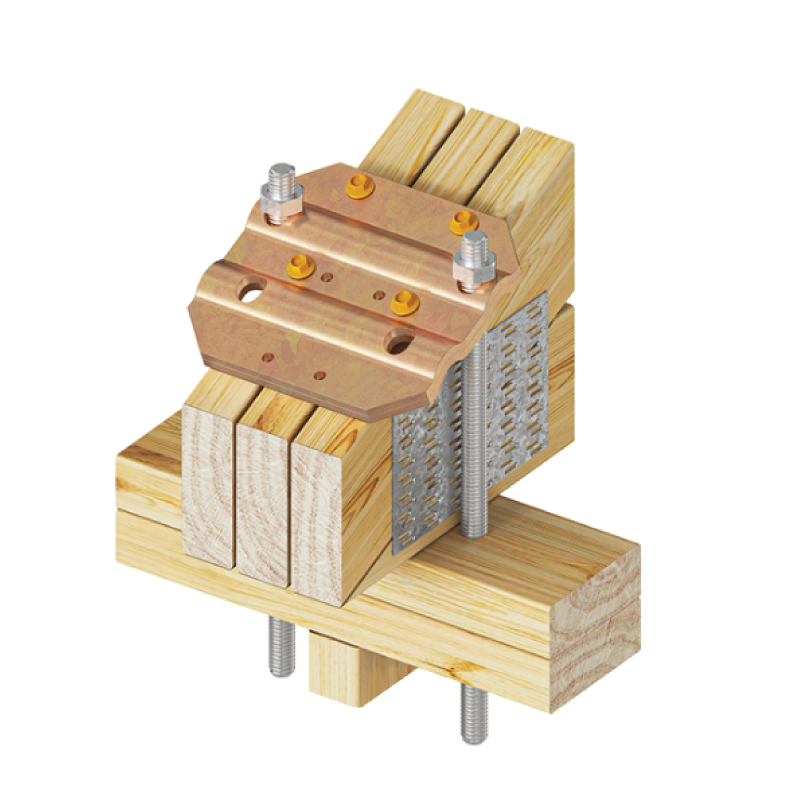

The High Capacity Hold down Plate is a single piece solution designed to anchor trusses, rafters or beams at any pitch to their supports.
Engineered for superior uplift resistance, it delivers a strong, efficient, and easy to install tie down connection ideal for high wind regions. It can accommodate double and triple 35 mm ply members, offering flexibility for multi-ply truss or beam configurations.
With its high load capacity and compact profile, it provides a dependable tie down connection suited to demanding wind uplift applications.
USES

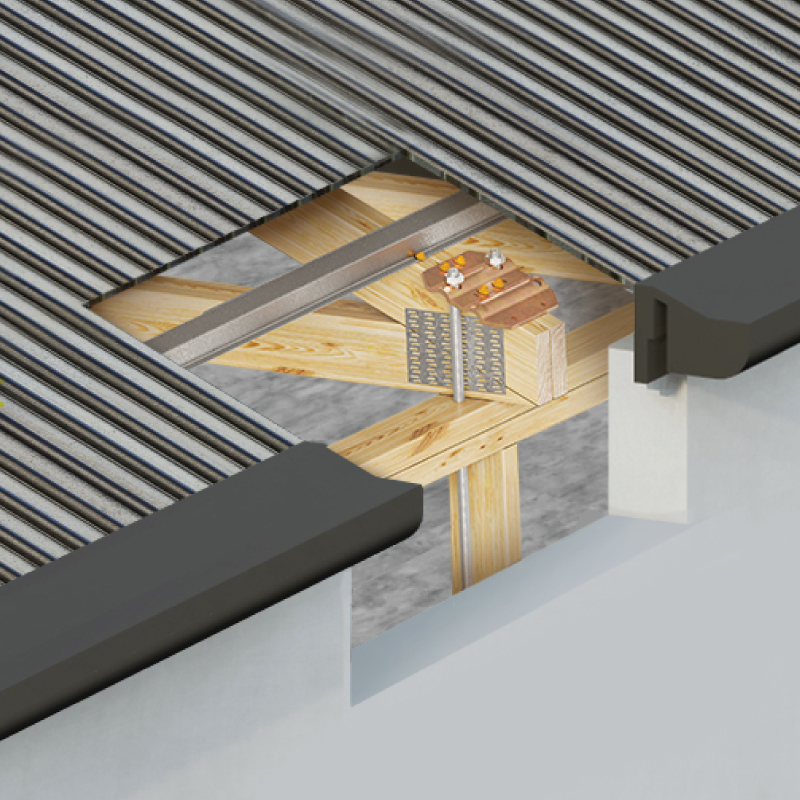

- High Capacity hold down plate provides a fast and easy method of anchoring trusses, rafters or beams to the top of supports in high wind region.
Advantages
- Fast and Easy to Install – The single piece design allows quick placement and fixing, reducing installation time on site.
- No Multiple or Moving Parts – Simplifies handling and eliminates the risk of component loss or incorrect assembly.
- High Wind Uplift Resistance – Engineered for superior strength to securely anchor trusses or beams in high wind regions.

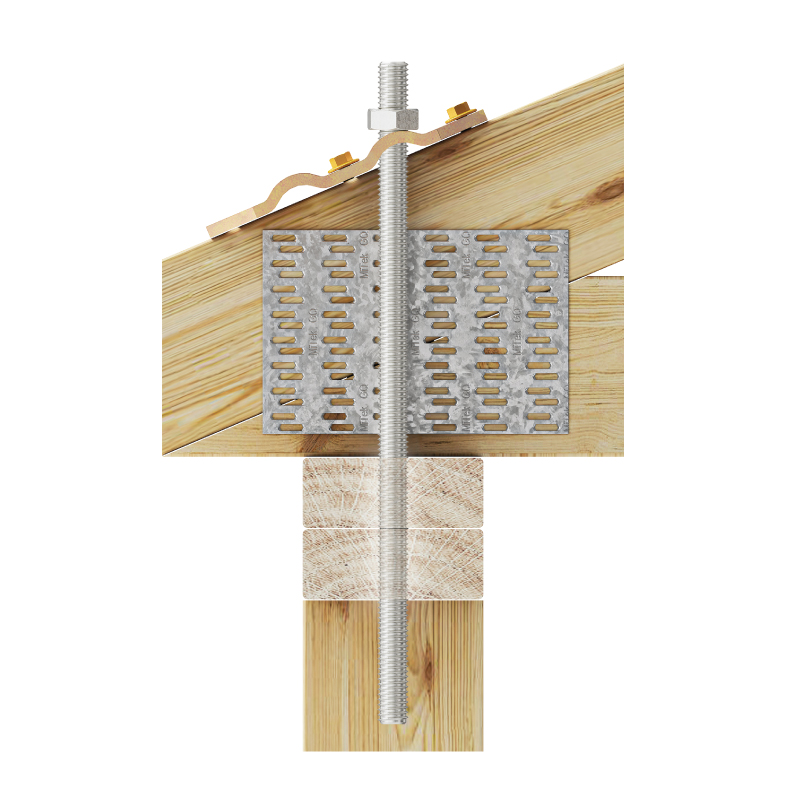

- Accommodates Various Pitches – Designed to suit trusses or beams at different roof or floor angles without additional components.
SPECIFICATIONS
G250
6mm
Electro Galvanised
MiTek No.14 x 30mm anti-split self-drilling HD galvanised screws with Ruspert® coating
HCHDP
