FAST PRESSING FOR FLOW- THROUGH STYLE JIGS
- 30T C-frame press head with regenerative valve and auto retract.
- Two handed operation for operator safety.
- Simple and robust construction.

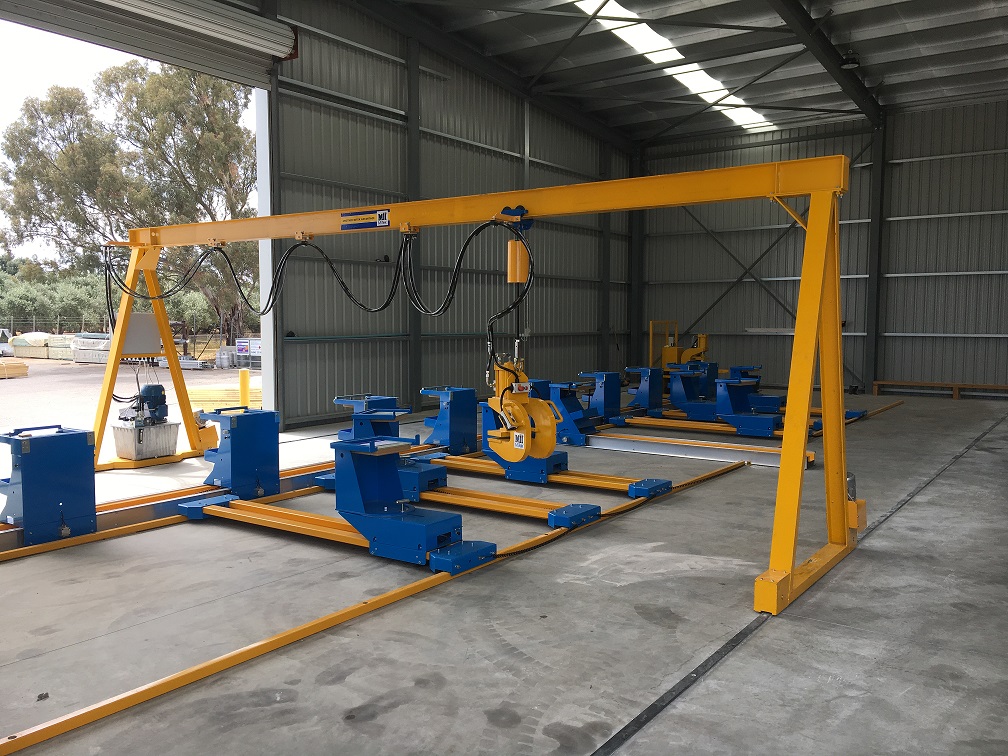

The Portal Press & Flo-Jig System is ideal for small to medium size truss plants. The MiTek Portal press is designed to work with flow-through style jigs, providing the pressing capably to any jig setup. The MiTek Portal press comes standard with a regenerative (regen) valve to speed up the pressing cycle and an auto-retract feature so the operator doesn’t need to manually open the C-Frame press before moving on to the next joint. These two features minimise pressing time and maximise output.
|Overall equipment dimensions||length 1600mm + Flo-Jig length, width 6300mm, height 2630mm.|
|Single press head||30T press capacity (45T option).|
|Hydraulic power pack motor||7.5kW.|
|Power requirements||415 V, 3 Phase, 20 A (includes the drive motors).|
|Maximum operating pressure||165.5 bar (2400 PSI).|
- 45T press head.
- 7.4M nominal width to suit jig with bottom chord press.
