Ranger™ Retrieval System
With a custom Ranger™ Retrieval System feeding your saws, you decrease costs and improve efficiency, all from the moment timber enters your truss plant.
Features
REDUCE LABOUR COST.
RAISE PRODUCTIVITY.
- Makes the BLADE™ wood processing system fully automated on the infeed side.
- Moves timber to the saw consistently and quickly.
- Stores timber of varying dimensions in a compact space.
- Reduces picking errors and costly mistakes.
Ranger™ Retrieval System Video
SPECIFICATIONS
Increasing productivity is as easy as installing a Ranger™ Retrieval System.
The highly efficient MatchPoint® BLADE™ wood processing system demands an infeed system that keeps pace with its speed. The Ranger™ Retrieval System not only has the speed, but also the flexibility to integrate seamlessly into your workflow. It is configured according to your own footprint and timber usage requirements. Together, the BLADE and Ranger™ Retrieval System complement each other to achieve a drastic improvement in productivity with less manpower.
How it works…
The Ranger™ Retrieval System seeks and retrieves the exact boards needed to cut.

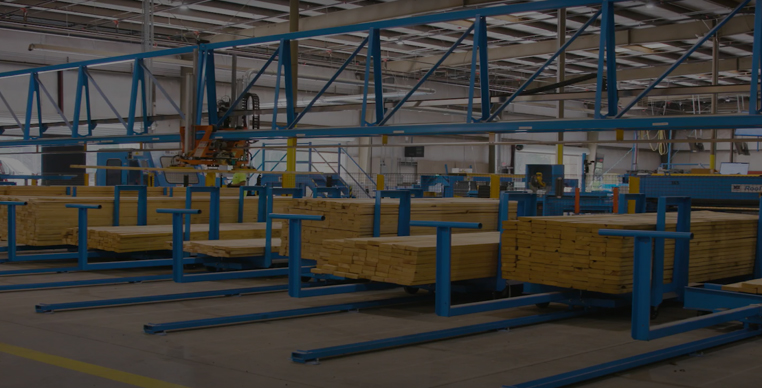

The core of the Ranger™ Retrieval System system is a trolley with an automated picking head. The trolley moves back and forth on a runway truss positioned over timber carts while the picking head’s laser scans below. After locating the specific piece of timber needed, the picking head uses a powerful vacuum to hold the board while moving it to the infeed deck.
The system is fast and efficient, constantly supplying the BLADE queue with timber. The result: your BLADE wood processing system never goes hungry waiting for a new board.
PHYSICAL DATA
| System Length | 6-35m |
| Timber Storage: Standard Cart | Standard Cart (width): 800mm (Australian Pine) or 1000 mm (Imported Pine) |
| Timber Storage: Magazine Cart | holds different sizes of timber |
PERFORMANCE DATA
| Speed of Trolley | 9000m/h without timber 6000m/h with timber |
| Timber Size | Width: 70mm-300mm Thicknes: 35mm and 45mm |
ELECTRICAL DATA
| Electrical Specs | 416V, 50/60 Hz, 3-phase (required transformer) |
PERFORMANCE DATA
| E-stops | Pushbuttons |
| Safeguards | Physical safety fence with light curtains, obstructions sensors |
| Safety Compliance | UL (panels), OSHA |
- Runway truss length can be customised.
- Select left- or right-side of runway truss to load from.
- Select front or rear of saw to load onto Infeed Rail.
