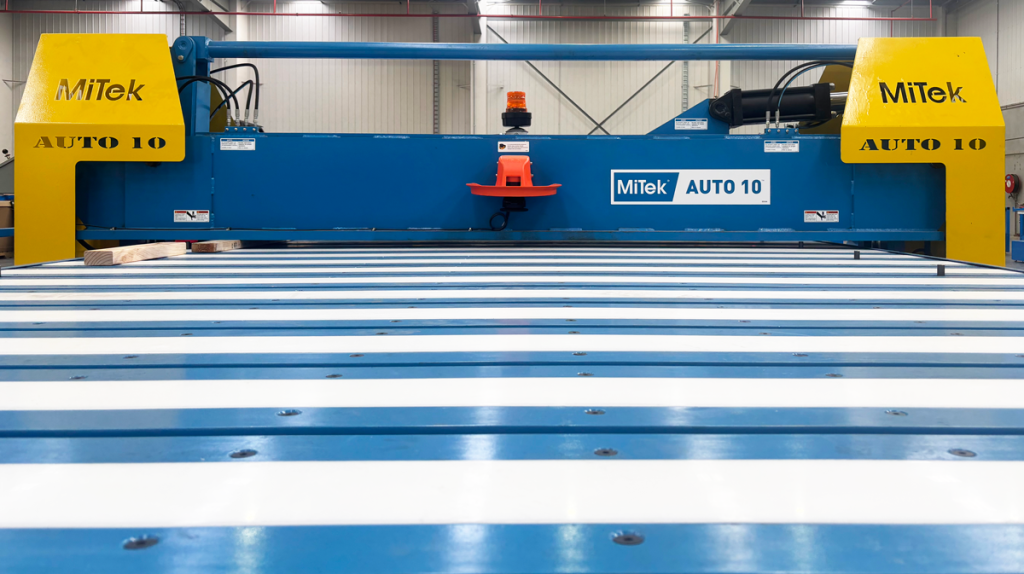

Auto 10 Press
Boost Capacity with a Press Designed for Speed, Strength, and Safety
The Auto 10 Press delivers fast, powerful platen pressing in a compact design, boosting workflow capacity with simple
joystick control, dual safety scanners, and a boost cycle for oversized plates and hardwood.
Features
- A platen press that has strength, speed, and a small footprint.
- Adds capacity and flexibility to your workflow.
- Scanners on each side of the press head keep employees safe while also preventing equipment damage.
- Single joystick for simple operation
- Boost pressing cycle for extra large plates or hardwood
- Dramatically reduces set up time compared to manual jigging
- Integrates with existing truss design software
- Compatible with the virtek laser system for added speed and convenience
SPECIFICATIONS
| Components | Gantry head and tables |
| Gantry head dimensions | 4.0 m (L) x 2.2 m (W) x 1.7 m (H) |
| Platen dimensions | 3.6 m (L) x 0.6 m (W) |
| Table dimensions | 12.0 m (L) x 3.0 m (W) x 0.9 m (H) |
| Gantry head weight | 6,800 Kg |
| Table weight | 12,700 Kg |
| Hydraulic reservoir | 230 litres |
| Direction of travel | Left and right |
| Pressing capacity | 45 tonnes using Boost cycle |
| Pressing cycle | 1.5 seconds for a Normal cycle |
| Pressing height | 25 mm to 100 mm, adjustable |
| Plate embedment | 100% |
| Travel speed | Up to 1.4m/s |
| Controls | 4-position joystick and pushbuttons |
| Electrical specs | 415 VAC 50 Hz 3-phase |
| FLA plus control amps | 45A |
| Disconnect protection | 63A |
| E-stops | Pushbutton Area scanners |
| Safety compliance | AS/NZS 4024 |
- Tekset™ jigging
- Up to 150 mm adjustable throat opening for larger pressing height
